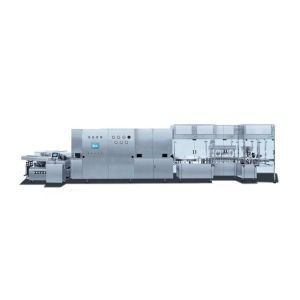

QCL-80 Automatic Aseptic Injectable Production Line for Vial and Ampule with Grade A Lamina Flow

Summary:

Rotary washing machine consists of infeeding section,ultrasonic section and final washing section. Containers go through these sections for completion of the whole washing process which includes 1 station for ultrasonic washing, 6 stations for interior and 2 stations for exterior cleaning.

Process Flow Diagram

Station 1: Ultrasonic washing

Station 2: Recirculated water cleaning container inside and outside

Station 3: Recirculated water only cleaning container inside

Station 4: Sterile air purging container inside

Station 5: Fresh water cleaning container inside

Station 6: Sterile air purging container inside

Station 7: Sterile air purging container inside and outside

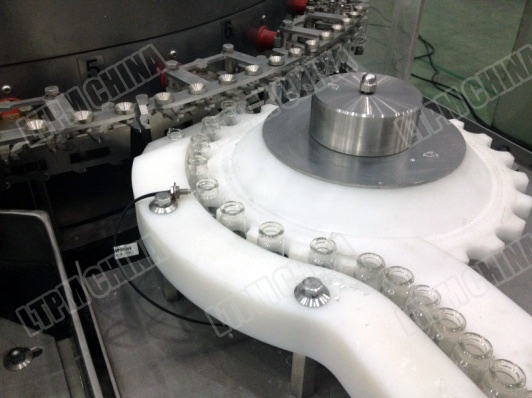

The containers are transported to the overfilling area for ultrasonic washing via a sloping conveyor and then singularly lifted up to the final washing station by a scroll located in the water bath. The containers turned upside down via neck by the plastic prism grippers.

Finally, the containers are transferred separately to the downstream tunnel via a special tooth belt outfeed device which avoid the breakage.

Technical parameters:
