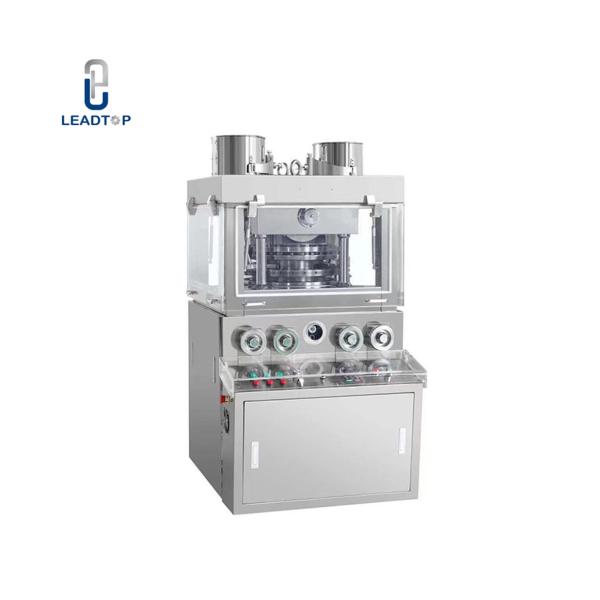

Rotary tablet press machine Pill Tablet Press Making Machine candy
press machine Tablet Compression Machine
We look forward to cooperating with you, any questions, please feel
free to let me know.
Products Description
This machine is suitable for samll scale tablet production. Tablets
formed twice by main pressing and pre-pressing.
All of the parts are easy to be fixed, disassembled and cleaned.
The machine is easy to operate and maintenance.
The machine running stably and durably. The machine meets GMP
requirements.
It can press round tablets, engraved tablets and irregular tablets,
such as candy, calcium tablets double-sides with letter printing
and etc. which widely suitable for the Industries of
pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder
Metallurgy ....
Feature:
1.The material of the machine is made of stainless steel with totally
closed, the surface of turntable deal with polished and prevent
cross pollution which meet the GMP standard.
2.It is equipped with Organic-glass perspective window for tablet
producing observation. Each perspective window could be fully
opened and easy for cleaning and maintenance.
3.It is adopts the import Frequency Timing with Electromagnetism
Clutch.
4.The system of Hydraulic Pressure keep the working pressure under
steady, when the pressure over-loading, it will be stopped the
machine automatically.
5.Driving system is equipped with oil box and running under oil, easy
for heat dissipation and wear-resistance.
6.It is equipped with Dust Collector as well, which avoid the dust
emission, and recycle to save dust.
Installation and after sales service:
Installing and Commission: We will install and test the machine in
best working condition before shipment.
If customer requires our technician to adjusting the machine and
train technician at arrival place, we will send technician there.
All our expenses including round-trip air ticket to the nearest
airport, local conveyance to your factory, Lodging & Boarding
expenses shall be
payable by you. In case the stay of our technician, the service
charges US $ 100 per day will be charged extra.
Technical Parameter
| Stations(unit) | 37 |
| Thickness of the die | 22mm |
Maximum compression | 80KN |
Max. Diameter of tablet to be produced | 13mm |
Rotary speed of the turret | 14-35rpm |
Max. Filling depth | 15mm |
Capacity of the tablet | 60,000-170,000pcs |
Max. Thickness of tablet | 6mm |
Area to occupy | 930x950 |
| Overall Dimension | 1500*1300*1650mm |
| Weight | 1950KG |
| Warranty | 5 years |

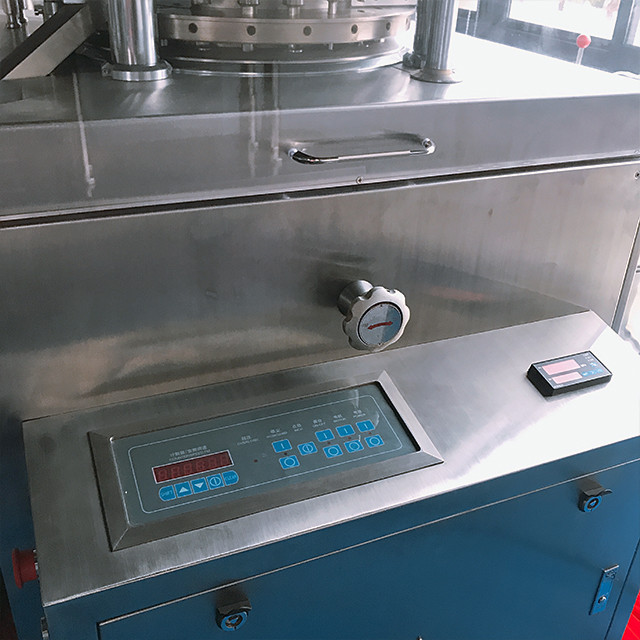

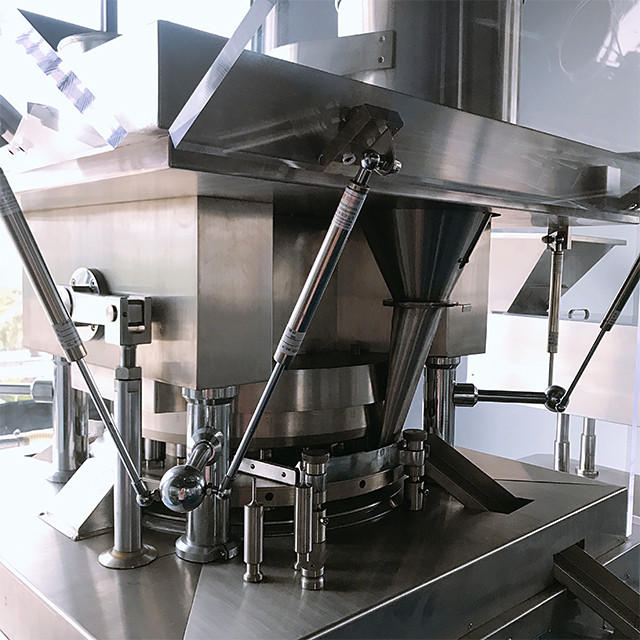

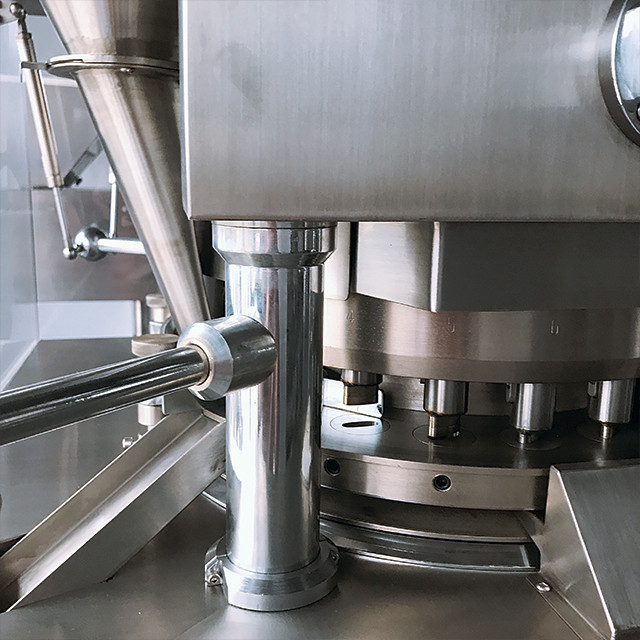

Detail picture
